概述内容

高速、高性能

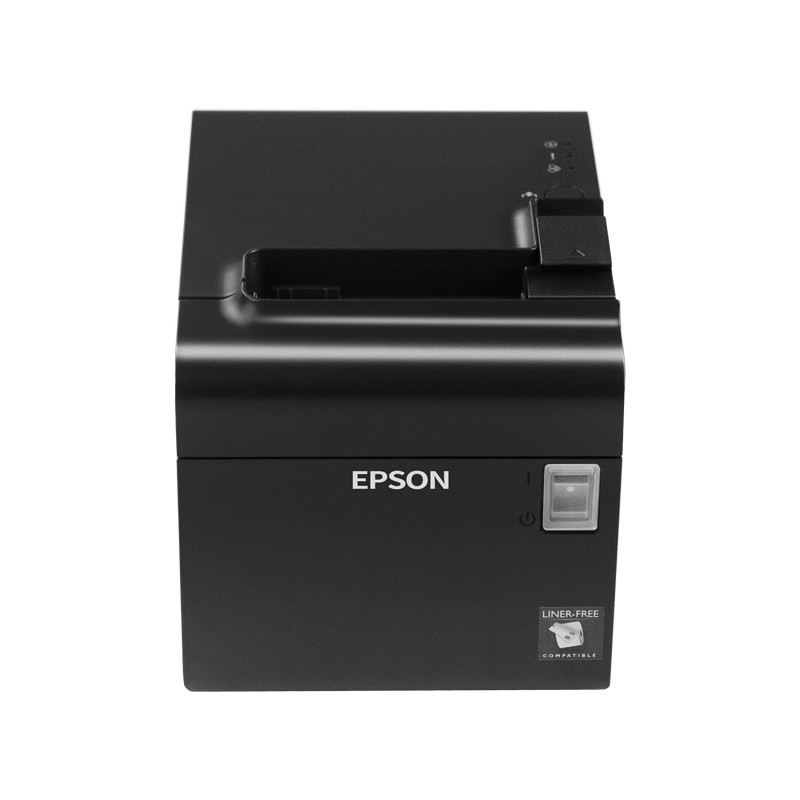

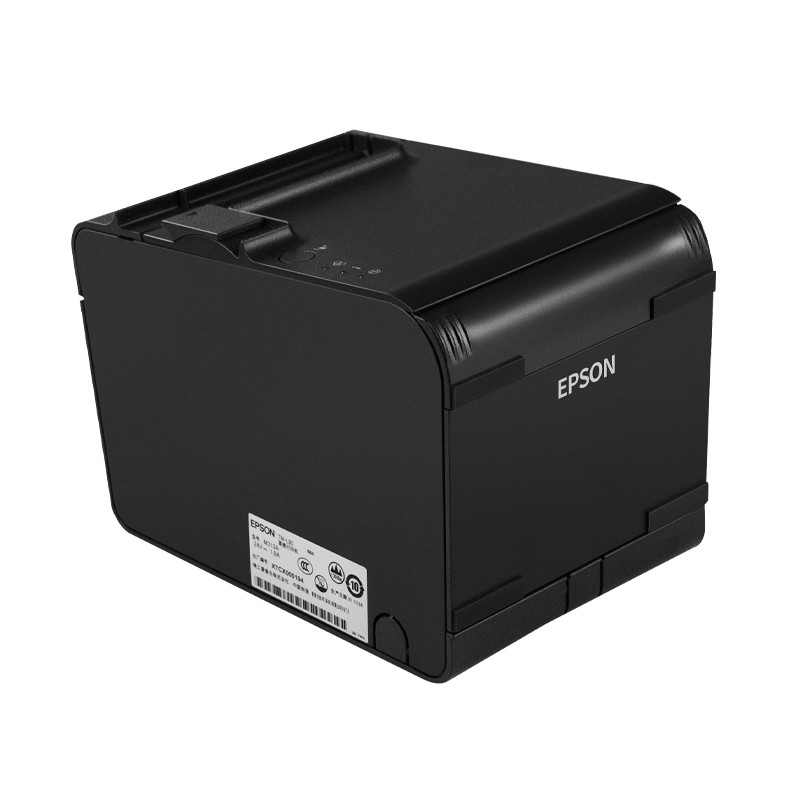

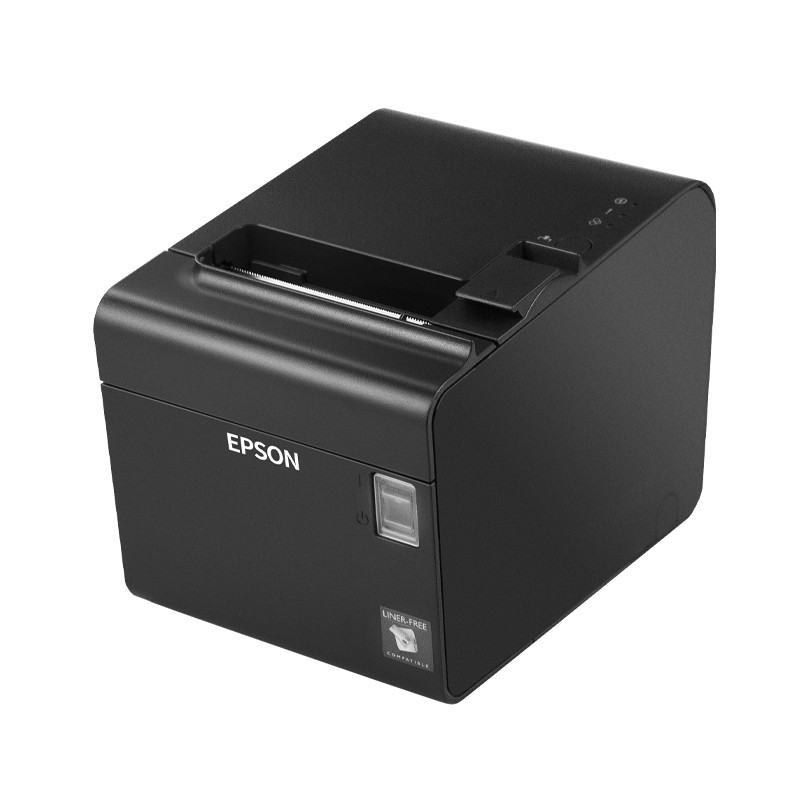

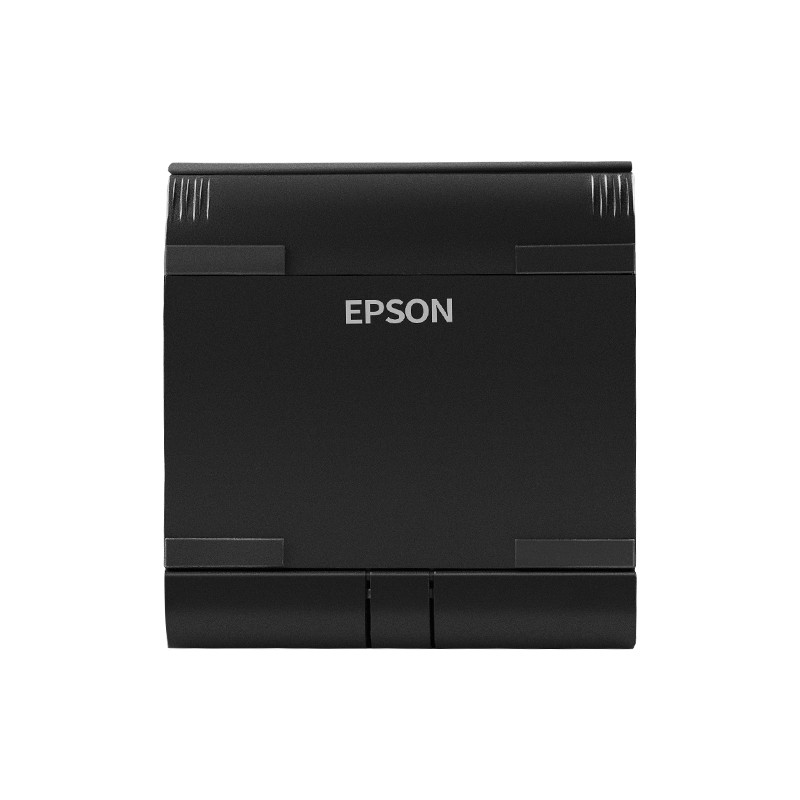

TM-L90是流行的适用于柜台的标签打印机，它的打印速度高达150毫米/秒，与此同时，用户还可以享受到条码打印带来的好处。

TM-L90能和目前的系统很贴切的匹配在一起。它不仅能够使用多种宽度的纸张，还可以和很多接口进行轻松连接。

规格参数

Item
Print method	Thermal line printing
Print Font	Font	9 x 17 / 12 x 24
	Column capacity(columns)	64 / 48
	Character size(mm)	1.1 (W) x 2.1 (H) / 1.5 (W) x 3.0 (H)
	Character set	95 Alphanumeric, 37 International, 128 x 11 Graphic Bar code: UPC-A, UPC-E , JAN13 (E AN), JAN8 (E AN), CODE 39, CODE 93, CODE 128, ITF , CODABAR , Two-dimens ional code: PDF417, Maxicode (L90 only), QR Code (L90 only)
	Characters Per Inch	22.6 cpi / 16.9 cpi
Interfaces *	RS -232, Bi-directional parallel, RS -485, USB, 10 Base-T I/F
Data buffer	4 KB or 45 bytes
Print speed	Max. 150 mm / sec.
Paper	Dimensions(mm)	Roll paper: Max. 79.5 ± 0.5 (W) x dia. 90 .0
Paper	Thickness(mm)	0.06 to 0.15
Copy capability	-
Inked ribbon	-
Ribbon Life(characters)	-
Power	24 VDC ± 7%
Power consumption	Approx. 1.7 A (mean)
D.K .D.function	2 drivers
Reliability	MTBF	360,000 hours
MCBF	70,000,000 lines (when printing receipt)
Overall dimensions (mm)	140 (W) x 148 (D) x 203 (H)
Mass (Approx.)	1.9 kg
EMC standards	VCCI class A, FCC class A, CE marking, AS / NZS 3548 class B
Power supply(option)	PS -180
Factory Options	-
Safety Standards	UL / CSA / T+V (E N60950)
